NTFS - Analysis and recov3r

Analising NTFS, and recovering deleted files.

May 20, 2026 / 54 min read updated: June 20, 2026

GitHub: https://github.com/MichaelMarkovsky/recov3r

First words

The following blog focuses on NTFS file system parsing, and recovering deleted data. It includes my recov3r project which recovers deleted files make in a Windows created NTFS.

Generally to analyse raw data of disks the workflow is:

Physical HDD → forensic image (.img / .dd / .E01) → analysis (ImHex, Autopsy, etc.)

Which is to not accidentally change metadata like timestamps…

Fantastic source: https://www.youtube.com/watch?v=BG1gQ4Ta79M&list=LL&index=15

Byte level NTFS documentation source: http://ftp.kolibrios.org/users/Asper/docs/NTFS/ntfsdoc.html

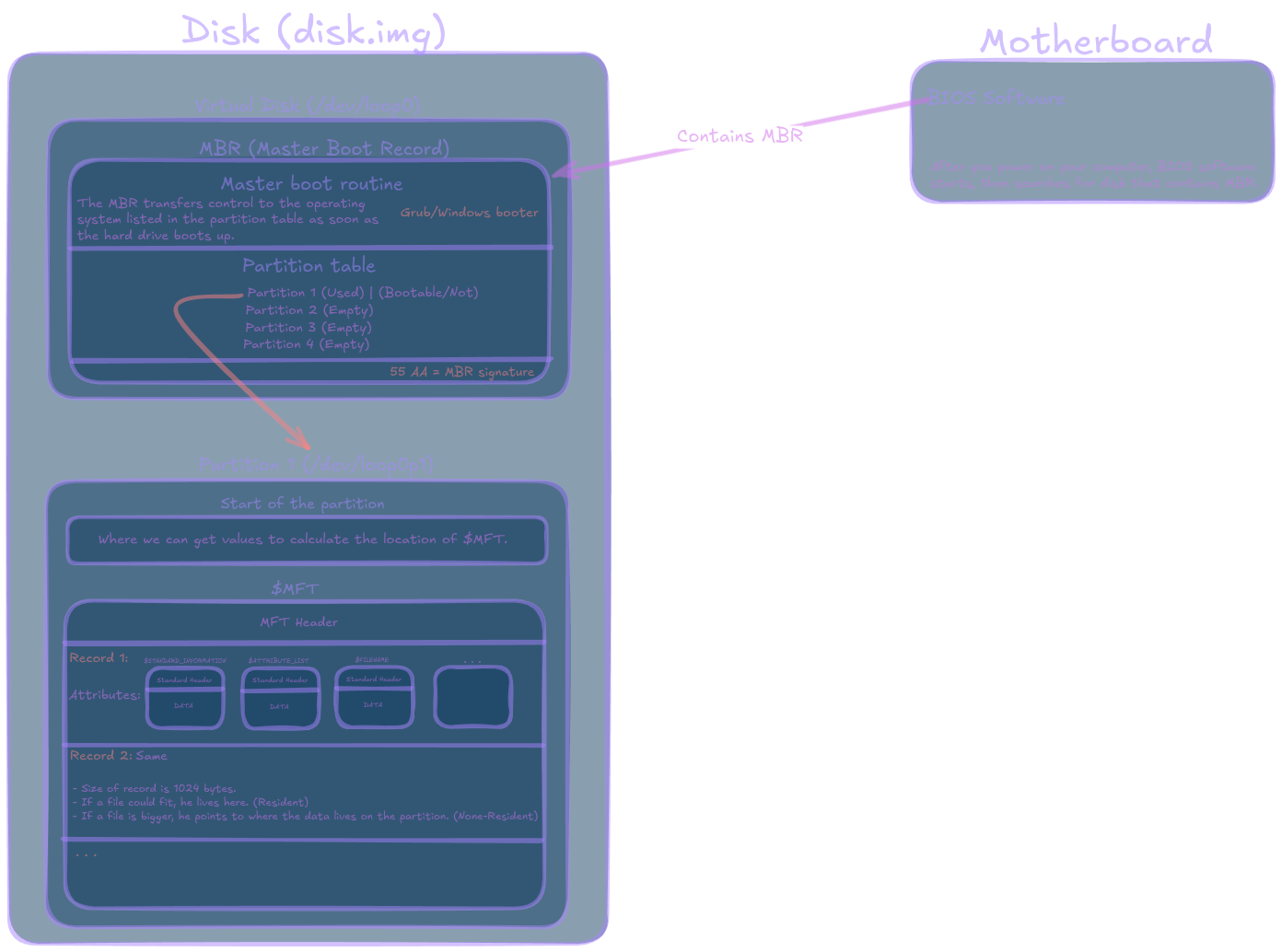

I will show a diagram of how the NTFS works to save up files and where: Overview

Steps of finding records and restoring their information:

1. Find MBR (or GPT on modern disks).

2. Read the partition table.

3. For each NTFS partition:
   a. Read the NTFS Boot Sector (VBR).
   b. Get:
      - Bytes per sector
      - Sectors per cluster
      - MFT starting cluster (LCN)
   c. Calculate the location of $MFT.

4. Parse MFT records.

5. For each MFT record:
   a. Check if the record is in use or deleted.
   b. Extract metadata:
      - Filename
      - Timestamps
      - Attributes
      - Parent directory

6. Find the $DATA attribute.

7. If the $DATA attribute is Resident:
      The file content is stored inside the MFT record itself.

8. If the $DATA attribute is Non-Resident:
      Read the run list (data runs).
      Use the run list to locate the clusters containing the file data.

9. Read the clusters and reconstruct the file.

Setup - Virtual disk creation

Start via having a test image in my arch linux system of NTFS.

Creating a blank fake physical disk file I am creating a 512MB empty binary file filled with zeros:

dd if=/dev/zero of=disk.img bs=1M count=512

dd - Low-level byte copier /dev/zero = a Linux virtual device that outputs infinite 00 bytes Basically i generate zero bytes, and output it to a file disk.img which becomes my fake hard drive.

bs=1M - Block size = 1 megabyte per write (it writes 1MB chunks). It does that 512 times meaning : 512 × 1MB = 512MB total disk size (of zeros)

Attach file as virtual disk Now we tell Linux to pretend this file is a real hard drive.

sudo losetup -fP disk.img

losetup - Linux tool that connects files ↔ loop devices -f - Find free loop device automatically (Example: /dev/loop0) -P - scan partition table and auto-create /dev/loop0p1 . it reads MBR ,detects partitions,exposes them as devices. disk.img - The file we want to treat as a disk

Meaning Linux creates:

/dev/loop0     → whole disk
/dev/loop0p1   → partition (if exists)

Currently we have:

disk.img  → raw file
loop0     → virtual disk view of file
(no partitions yet visible meaningfully)

Create MBR partition table Now i write the master boot record structure at sector 0:

sudo parted /dev/loop0 mklabel msdos

Which writes at byte 0:

[446 bytes boot code (empty or generic)]
[64 bytes partition table]
[2 bytes signature 0x55AA]

msdos - MBR partitioning scheme

Now we shall create a partition

sudo parted /dev/loop0 mkpart primary ntfs 1MiB 100%

This basically adds an entry into the MBR partition table. mkpart - Create partition entry primary - Standard partition type (MBR allows up to 4 primary partitions) ntfs - Just a lable hint 1MiB - Start position, meaning skip first 1MiB (reserved for alignment + MBR safety) Meaning what is written is metadata:

MBR partition entry:
- start LBA = 2048
- size = rest of disk
- type = 0x07 (NTFS)

Now we have:

disk.img
├── MBR (partition table exists)
└── empty partition region (NOT formatted yet)

Formatting the partition

sudo mkfs.ntfs /dev/loop0p1

We are formatting the partition to NTFS file system. Meaning we are writing:

NTFS boot sector (VBR)
NTFS metadata files:

Name	MFT Record	Purpose
`$MFT`	0	Master File Table (database of all files)
`$MFTMirr`	1	Backup of first MFT records
`$LogFile`	2	Transaction log (crash recovery)
`$Volume`	3	Volume info (label, version, dirty flag)
`$AttrDef`	4	Attribute definitions
`$Root`	5	Root directory
`$Bitmap`	6	Allocation bitmap (free/used clusters)
`$Boot`	7	Boot sector metadata
`$BadClus`	8	Bad cluster tracking
`$Secure`	9	Security descriptors database
`$UpCase`	10	Unicode uppercase table
`$Extend`	11	Extension directory
Inside extend there are more, which i will not discuss.

We are also creating the cluster allocation system:

cluster size (usually 4KB)
disk layout mapping

Now partition becomes a real filesystem:

/dev/loop0p1 = NTFS volume

Writing and reading files as user This is the step where we mount the disk to our machine, and then can use it as a regular user:

sudo mount /dev/loop0p1 /mnt/test

Linux:

reads NTFS boot sector
parses MFT
builds file tree in memory
exposes it as a directory

Basically:

/mnt/test = “window into NTFS”

Now we have:

disk.img (file on your SSD)
│
├── /dev/loop0 (virtual disk)
│     └── sector 0 → MBR
│
│
└── /dev/loop0p1 (partition)
      ├── NTFS boot sector
      ├── $MFT
      ├── files (a.txt, etc.)
      └── free space

Which is basically:

Physical Disk
│
├── Sector 0
│     └── MBR
│           └── Partition Table
│
├── Sector 1
├── Sector 2
├── ...
│
├── Sector 2048
│     └── NTFS Boot Sector
│
├── Sector 2080
│     └── $MFT
│
├── Sector 2082
│     └── $MFTMirr
│
├── Sector 3000
│     └── File data
│
└── Sector 4000
      └── More file data

We can write anything, and we could analyse that disk but for simplicity i will analyse the disk.img file.

So after we write into the disk , we shall unmount it:

sudo umount /mnt/test

Linux:

flushes all cached writes to disk
closes the NTFS filesystem driver
detaches the “window” (/mnt/test)
ensures all changes are written back into disk.img

To sum it up, we just created a virtual disk that is in a Physical file disk.img, which we can mount as a Virtual disk that contains a partition of the format NTFS.

Physical file (disk.img)
→ Virtual disk (/dev/loop0)
→ Partition (/dev/loop0p1)
→ Filesystem (NTFS)
→ Files (/mnt/test/a.txt)

Analysis importance:

disk.img
│
├── viewed directly → raw forensic view
│
├── mapped as /dev/loop0
│     └── kernel pretends it is hardware
│
└── mapped as /dev/loop0p1
      └── partition-only window

I will analyse the disk.img.

For testing and analysis, i have created:

/a.txt , wrote Hello from the other side..
/b.txt , wrote super secret password: 123, renamed to /secret.txt , then deleted the file.
Copied 12 - High School Sweethearts.m4a the to disk , then deleted it.

Analysis time

MBR

I use the great tool ImHex editor to view the hex and bytes of data. I opened the disk.img file and viewed the data.

First of all the first data we find is code for the MBR (Master Boot Record) which is 512 bytes of sector 0:

Hex View  00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F

00000000  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000010  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000020  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000030  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000040  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000050  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000060  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000070  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000080  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000090  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000000A0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000000B0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000000C0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000000D0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000000E0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000000F0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000100  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000110  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000120  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000130  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000140  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000150  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000160  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000170  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000180  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000190  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000001A0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000001B0  00 00 00 00 00 00 00 00  CD 86 3C 42 00 00 00 04  ..........<B....
000001C0  01 04 07 FE C2 FF 00 08  00 00 00 F8 0F 00 00 00  ................
000001D0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000001E0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000001F0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 55 AA  ..............U.

Source: https://www.geeksforgeeks.org/operating-systems/mbr-master-boot-record/

The Master Boot Record (MBR) is the first sector on a hard drive that contains special data about the operating system that was used to start the computer. “Sector zero,” “master boot block,” or “master partition boot sector” are other terms for the Master Boot Sector.

This plays in the selection of a disk via the bios: The BIOS software first assesses the hardware of the system and looks for boot devices that have an MBR. After that, it checks to see if the final signature is 55AAH by reading the first sector up to 0000:7C00H. In order to boot the OS, it then switches control to the MBR.

The volume boot code of the partition is used by the MBR boot code to determine which is the system partition. The OS is then started and the system is booted using the boot sector of the partition. The computer won’t start if the instructions aren’t followed, perhaps because the MBR isn’t there.

There are three sections to the Master Boot Record:

Master boot routine: The 446-byte master boot routine includes a variable load coder, which is necessary data for the MBR. The MBR transfers control to the operating system listed in the partition table as soon as the hard drive boots up.
Disk partition table (DPT): The DPT, which is found in the hard disk’s first sector, has information on the partitions’ positions. There are 64 bytes in it. Extended partitions can be made as needed, with a maximum of four partitions (16 bytes each).
Identification code: The MBR can be identified by its identification code. It has a value of 55AAH or AA55H and is 2 bytes in size.

Observations

In my example, we do not have variable load coder, which is why we see a lot of zeros at first. Meaning GRUB / Windows boot sector is empty, meaning there is no option to boot an operating system on the drive, which is exactly as I configured.

The MBR can be recognized via 55 AA.

Hex View  00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F

000001B0  00 00 00 00 00 00 00 00  CD 86 3C 42 00 00 00 04  ..........<B....
000001C0  01 04 07 FE C2 FF 00 08  00 00 00 F8 0F 00 00 00  ................
000001D0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000001E0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
000001F0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 55 AA  ..............U.

At the bottom we can observe that there are 4 partition, which only 1 is used:

Hex View  00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F

000001B0  00 00 00 00 00 00 00 00  CD 86 3C 42 00 00 00 04
													 ^^^^^
000001C0  01 04 07 FE C2 FF 00 08  00 00 00 F8 0F 00 00 00
          ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^|^^^^^
                 Partition Entry #1 (used)

000001D0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00
          ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^|^^^^^
                 Partition Entry #2 (empty)

000001E0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00
          ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^|^^^^^
                 Partition Entry #3 (empty)

000001F0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 55 AA
          ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
                 Partition Entry #4 (empty)

                                              55 AA = MBR signature

The partition that is used:

00 04 01 04 07 FE C2 FF 00 08  00 00 00 F8 0F 00

Rules:

Byte  Meaning
----  ------------------
0     Boot flag
1-3   Starting CHS
4     Partition type
5-7   Ending CHS
8-11  Starting LBA
12-15 Number of sectors

The first byte is shows us if the partition is a active/bootable or not bootable.

0x80 = active/bootable
0x00 = not bootable In our example its 0x00 = not bootable.

Beginning of the partition in CHS notation 04 01 04 , which is not used today. The next important byte is 07, which tells us the type of the partition, which is NTFS. End of the partition in CHS FE C2 FF.

What is important here is 00 08 00 00, starting LBA notation. Meaning it has to be reversed when reading, so it turns to 00 00 08 00.

Starting LBA = absolute disk offset where the partition begins

Meaning, LBA is 2048 bytes = 0x00000800
Block size is alway 512 bytes = 0x0200 bytes

The number 512 bytes (Block size) is used because it represents the standard size of a single storage sector on a hard drive in bytes.

Starting partition calculation:0x00000800 multiply by 0x0200 = 0x00100000 = 1,048,576 bytes = 1 Mib Meaning the partition begins at 0x00100000.

Partition

When jumping via control+g in imhex, to 0x00100000, I see the start (first sector) of the partition:

Hex View  00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F

00100000  EB 52 90 4E 54 46 53 20  20 20 20 00 02 08 00 00  .R.NTFS    .....
00100010  00 00 00 00 00 F8 00 00  00 00 00 00 00 00 00 00  ................
00100020  00 00 00 00 80 00 80 00  FF F7 0F 00 00 00 00 00  ................
00100030  04 00 00 00 00 00 00 00  7F FF 00 00 00 00 00 00  ................
00100040  F6 00 00 00 01 00 00 00  1D FC C6 25 79 65 38 20  ...........%ye8
00100050  00 00 00 00 0E 1F BE 71  7C AC 22 C0 74 0B 56 B4  .......q|.".t.V.
00100060  0E BB 07 00 CD 10 5E EB  F0 32 E4 CD 16 CD 19 EB  ......^..2......
00100070  FE 54 68 69 73 20 69 73  20 6E 6F 74 20 61 20 62  .This is not a b
00100080  6F 6F 74 61 62 6C 65 20  64 69 73 6B 2E 20 50 6C  ootable disk. Pl
00100090  65 61 73 65 20 69 6E 73  65 72 74 20 61 20 62 6F  ease insert a bo
001000A0  6F 74 61 62 6C 65 20 66  6C 6F 70 70 79 20 61 6E  otable floppy an
001000B0  64 0D 0A 70 72 65 73 73  20 61 6E 79 20 6B 65 79  d..press any key
001000C0  20 74 6F 20 74 72 79 20  61 67 61 69 6E 20 2E 2E   to try again ..
001000D0  2E 20 0D 0A 00 00 00 00  00 00 00 00 00 00 00 00  . ..............
001000E0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001000F0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00100100  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00100110  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00100120  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00100130  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00100140  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00100150  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00100160  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00100170  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00100180  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00100190  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001001A0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001001B0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001001C0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001001D0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001001E0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001001F0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 55 AA  ..............U.

Observations

Boot jump bytes are EB 52 90 :

EB = JMP instruction
52 = jump offset
90 = NOP (padding) This is x86 boot code entry point , BIOS jumps here after loading sector into memory.

We can see the 4 magic numbers are 4E 54 46 53 20 20 20 20, which can be converted to NTFS , that tells use the file system of the partition.

Right after we have bytes per sector 00 02 ,Little endian meaning we shall read it backwards to 0x0200 = 512 bytes per sector.

Then we have 08, which is 8 sectors per cluster.

Meaning 512 × 8 = 4096 bytes (4 KB cluster size).

Reserved fields for perhaps later use:

00 00 00 00 00 F8 00 00  00 00 00 00 00 00 00 00 00 00 00 00 80 00 80 00

And then we have FF F7 0F 00 which converts as Little endian to 0x000FF7FF = 1,046,527 sectors which is the total size of the partition in sectors. We know that a sector is 512 bytes , meaning the total size of the partition is 1,046,527 × 512 ≈ 535,821,824 bytes which is 511.00 MB.

Now this make sense because, we created the starting position of the partition after skipping first 1MiB (reserved for alignment + MBR safety).

Now for the important part, which is location the MFT file.

Hex View  00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F

00100030  04 00 00 00 00 00 00 00                           ........

The start of the Master File Table is 04 00 00 00 00 00 00 00 to Little endian is 00 00 00 00 00 00 00 40 which is 0x0000000000000004 = starts in 4 clusters. Meaning the $MFT starts at the location 4 x 4096 bytes = 16384 bytes = 0x4000. This meanings that from our current position we need to add those bytes: 0x00100000 + 0x4000 = 0x00104000.

Location of $MFT is 0x00104000.

$MFT

We jump to 0x00104000 which is the location of the $MFT file:

Hex View  00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F

00104000  46 49 4C 45 30 00 03 00  00 00 00 00 00 00 00 00  FILE0...........
00104010  01 00 01 00 38 00 01 00  98 01 00 00 00 04 00 00  ....8...........
00104020  00 00 00 00 00 00 00 00  04 00 00 00 00 00 00 00  ................
00104030  03 00 00 00 00 00 00 00  10 00 00 00 60 00 00 00  ............`...
00104040  00 00 18 00 00 00 00 00  48 00 00 00 18 00 00 00  ........H.......
00104050  00 AF B5 F6 18 EE DC 01  00 AF B5 F6 18 EE DC 01  ................
00104060  00 AF B5 F6 18 EE DC 01  00 AF B5 F6 18 EE DC 01  ................
00104070  06 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00104080  00 00 00 00 00 01 00 00  00 00 00 00 00 00 00 00  ................
00104090  00 00 00 00 00 00 00 00  30 00 00 00 68 00 00 00  ........0...h...
001040A0  00 00 18 00 00 00 02 00  4A 00 00 00 18 00 01 00  ........J.......
001040B0  05 00 00 00 00 00 05 00  00 AF B5 F6 18 EE DC 01  ................
001040C0  00 AF B5 F6 18 EE DC 01  00 AF B5 F6 18 EE DC 01  ................
001040D0  00 AF B5 F6 18 EE DC 01  00 70 00 00 00 00 00 00  .........p......
001040E0  00 6C 00 00 00 00 00 00  06 00 00 00 00 00 00 00  .l..............
001040F0  04 03 24 00 4D 00 46 00  54 00 00 00 00 00 00 00  ..$.M.F.T.......
00104100  80 00 00 00 48 00 00 00  01 00 40 00 00 00 01 00  ....H.....@.....
00104110  00 00 00 00 00 00 00 00  1F 01 00 00 00 00 00 00  ................
00104120  40 00 00 00 00 00 00 00  00 00 12 00 00 00 00 00  @...............
00104130  00 00 12 00 00 00 00 00  00 00 12 00 00 00 00 00  ................
00104140  12 20 01 04 00 00 00 00  B0 00 00 00 48 00 00 00  . ..........H...
00104150  01 00 40 00 00 00 03 00  00 00 00 00 00 00 00 00  ..@.............
00104160  00 00 00 00 00 00 00 00  40 00 00 00 00 00 00 00  ........@.......
00104170  00 10 00 00 00 00 00 00  90 00 00 00 00 00 00 00  ................
00104180  90 00 00 00 00 00 00 00  11 01 02 00 00 00 00 00  ................
00104190  FF FF FF FF 00 00 00 00  00 00 00 00 00 00 00 00  ................
001041A0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001041B0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001041C0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001041D0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001041E0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
001041F0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 03 00  ................
...

Observations

We now know the location of the MFT table and since we also know the record size, we can simply parse the whole MFT table as we iterate through all the records and sort them via flags.

Meaning we can then understand and extract all files and their data whose been deleted as well.

We found then the first record of the MFT file, which is the MFT header meaning it stores information about the structure of the MFT table.

Instead of analyzing specifically the first record, I think it would be more interesting to analyze a user created record.

Right before I do that, I will map the first contents the of table and its location:

Record	Location	Name
0	00104000	$MFT
1	00104400	$MFTMir
2	00104800	$LogFile
3	00104C00	$Volume
4	00105000	$AttrDef
5	00105400	$I30
6	00105800	$Bitmap
7	00105C00	$Boot
8	00106000	$BadClus
9	00106400	$Secure
10	00106800	$UpCase
11	00106C00	$Extend
…

Record Types

Files can be saved in 2 types:

Resident file which is a file that is able to have all its data stored entirely inside the record of the MFT, which has to be under 1024 bytes.

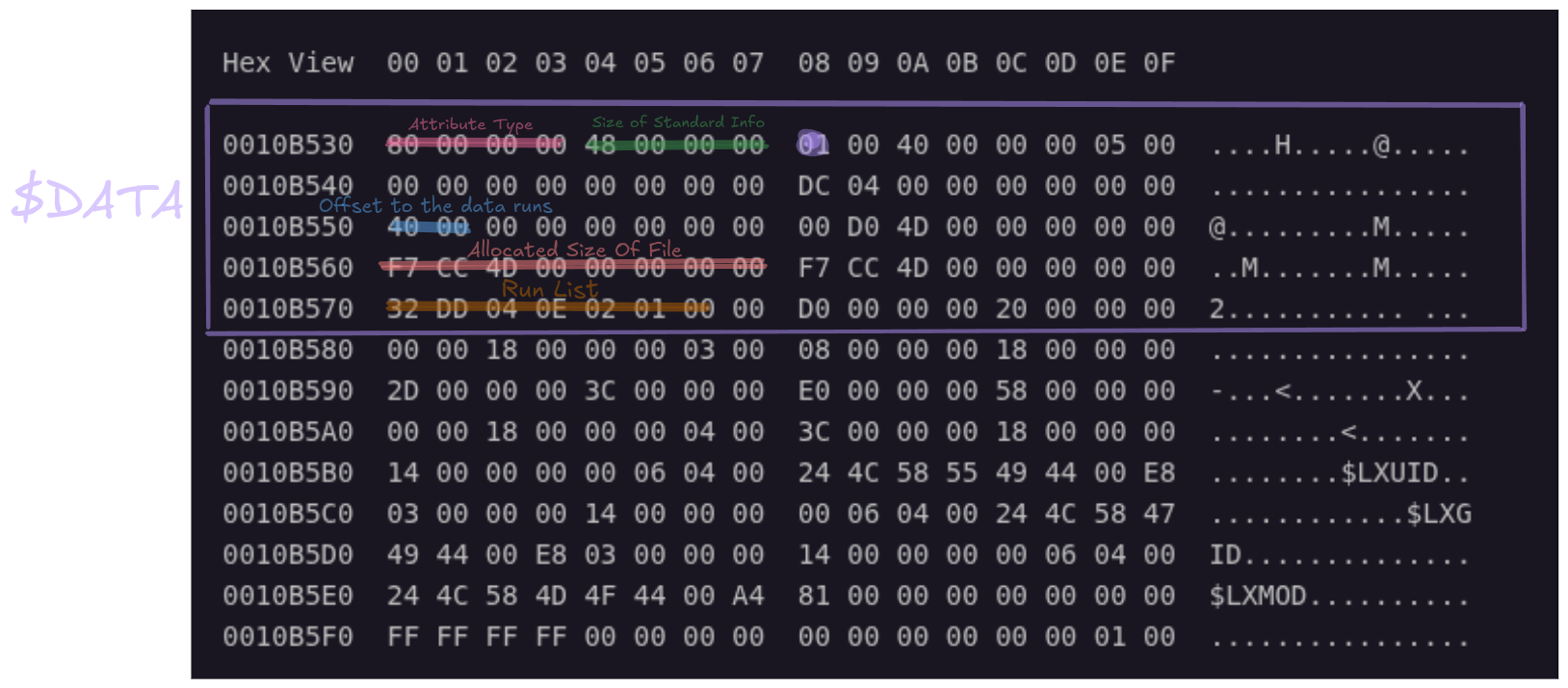

None-Resident file is a file that its data cannot be fit into the record of MFT, meaning we will see instead the location of the data written inside the record, which we can then recover.

$MFT Record

Since this is a record of the MFT , we shall look at how a record looks like:

+----------------------+
|     MFT Record       |
|----------------------|
| Record Header        |
|----------------------|
| Attribute 1          |
|  - Attribute Header  |
|  - Attribute Data    |
|----------------------|
| Attribute 2          |
|  - Attribute Header  |
|  - Attribute Data    |
|----------------------|
| Attribute 3          |
|  - Attribute Header  |
|  - Attribute Data    |
|----------------------|
| 0xFFFFFFFF (End)     |
+----------------------+

Attribute Headers

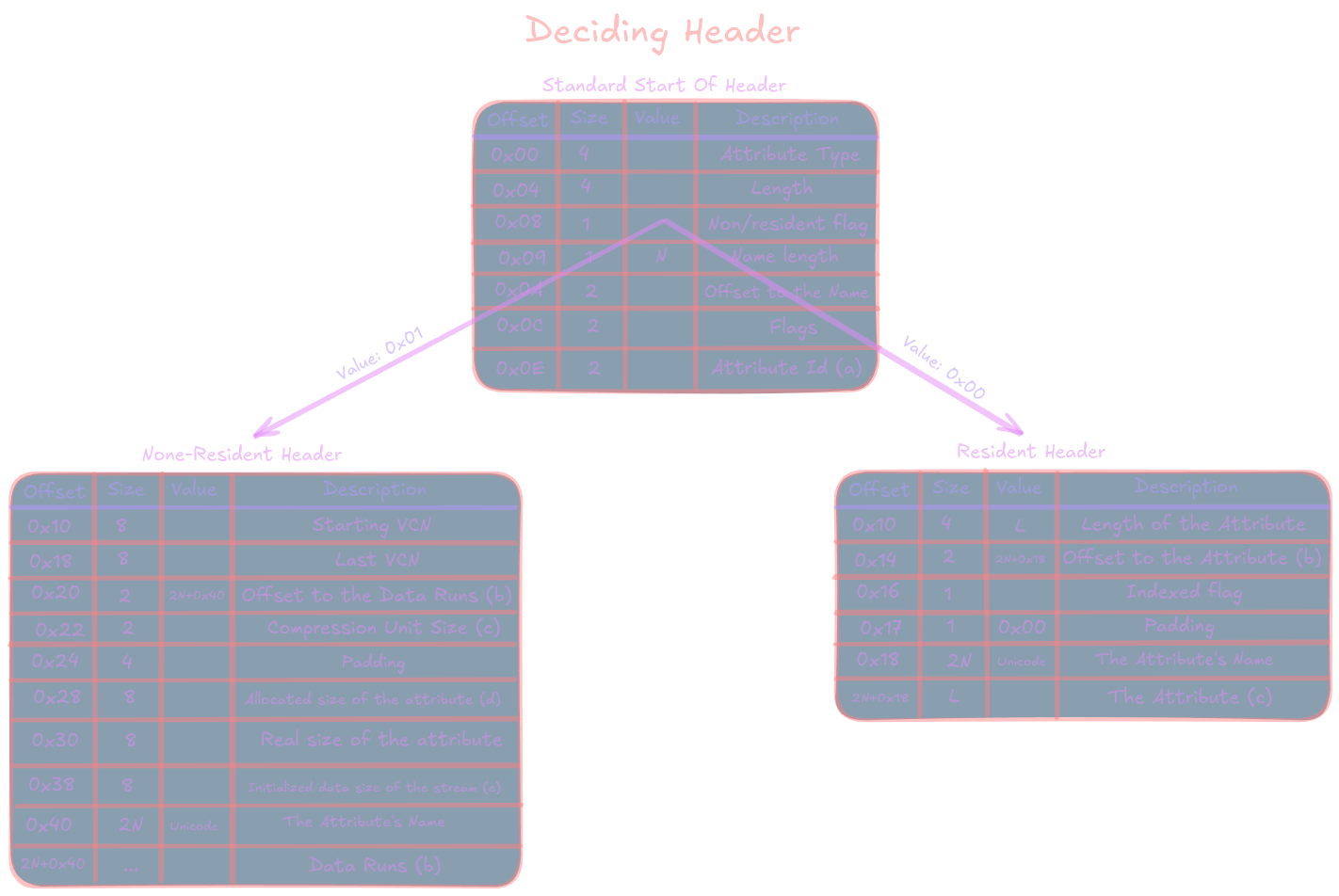

Each Attribute has an Attribute Header. Since there are 2 types of records, resident and none-resident , we also have 2 different headers, which their beginning is the same but the rest of their rows are different.

Based on which is which via the flag, we choose our rest of the rows: Headers

The tables: Layout of a resident named attribute header

Offset	Size	Value	Description
0x00	4		Attribute Type (e.g. 0x90, 0xB0)
0x04	4		Length (including this header)
0x08	1	0x00	Non-resident flag
0x09	1	N	Name length
0x0A	2	0x18	Offset to the Name
0x0C	2	0x00	Flags
0x0E	2		Attribute Id (a)
0x10	4	L	Length of the Attribute
0x14	2	2N+0x18	Offset to the Attribute (b)
0x16	1		Indexed flag
0x17	1	0x00	Padding
0x18	2N	Unicode	The Attribute’s Name
2N+0x18	L		The Attribute (c)

Attribute flags

Flag	Description
0x0000	Normal
0x0001	Compressed
0x4000	Encrypted
0x8000	Sparse

Layout of a non-resident named attribute header

Offset	Size	Value	Description
0x00	4		Attribute Type (e.g. 0x80, 0xA0)
0x04	4		Length (including this header)
0x08	1	0x01	Non-resident flag
0x09	1	N	Name length
0x0A	2	0x40	Offset to the Name
0x0C	2		Flags
0x0E	2		Attribute Id (a)
0x10	8		Starting VCN
0x18	8		Last VCN
0x20	2	2N+0x40	Offset to the Data Runs (b)
0x22	2		Compression Unit Size (c)
0x24	4	0x00	Padding
0x28	8		Allocated size of the attribute (d)
0x30	8		Real size of the attribute
0x38	8		Initialized data size of the stream (e)
0x40	2N	Unicode	The Attribute’s Name
2N+0x40	…		Data Runs (b)

Attribute flags

Flag	Description
0x0001	Compressed
0x4000	Encrypted
0x8000	Sparse

Attributes

The record contains the following attributes, some of which could be empty:

Type	OS	Name
0x10		$STANDARD_INFORMATION
0x20		$ATTRIBUTE_LIST
0x30		$FILE_NAME
0x40	NT	$VOLUME_VERSION
0x40	2K	$OBJECT_ID
0x50		$SECURITY_DESCRIPTOR
0x60		$VOLUME_NAME
0x70		$VOLUME_INFORMATION
0x80		$DATA
0x90		$INDEX_ROOT
0xA0		$INDEX_ALLOCATION
0xB0		$BITMAP
0xC0	NT	$SYMBOLIC_LINK
0xC0	2K	$REPARSE_POINT
0xD0		$EA_INFORMATION
0xE0		$EA
0xF0	NT	$PROPERTY_SET
0x100	2K	$LOGGED_UTILITY_STREAM

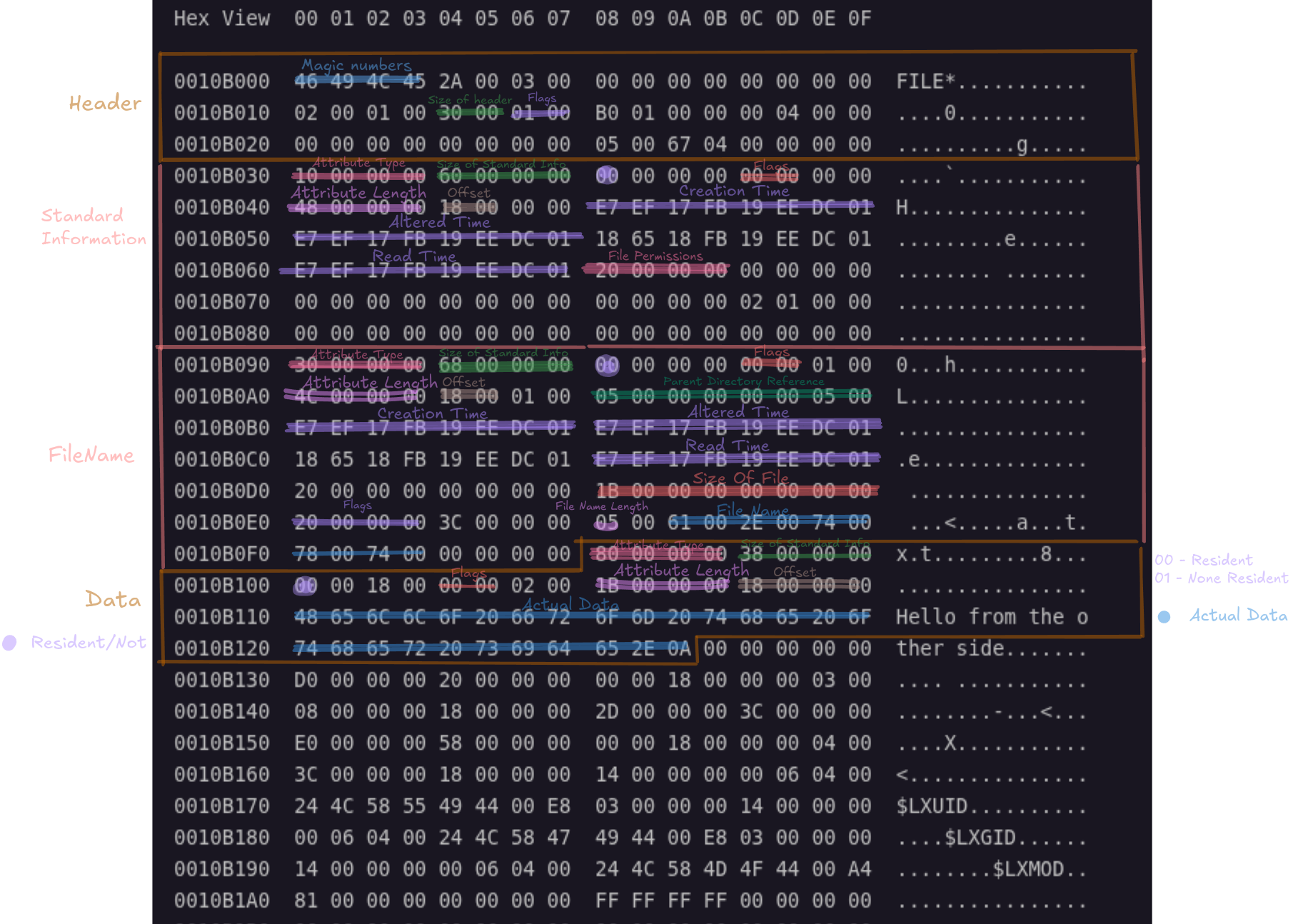

Resident file

Now we shall analyse a record of the MFT table, which is a user created file in this instance:

Hex View  00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F

0010B000  46 49 4C 45 2A 00 03 00  00 00 00 00 00 00 00 00  FILE*...........
0010B010  02 00 01 00 30 00 01 00  B0 01 00 00 00 04 00 00  ....0...........
0010B020  00 00 00 00 00 00 00 00  05 00 67 04 00 00 00 00  ..........g.....
0010B030  10 00 00 00 60 00 00 00  00 00 00 00 00 00 00 00  ....`...........
0010B040  48 00 00 00 18 00 00 00  E7 EF 17 FB 19 EE DC 01  H...............
0010B050  E7 EF 17 FB 19 EE DC 01  18 65 18 FB 19 EE DC 01  .........e......
0010B060  E7 EF 17 FB 19 EE DC 01  20 00 00 00 00 00 00 00  ........ .......
0010B070  00 00 00 00 00 00 00 00  00 00 00 00 02 01 00 00  ................
0010B080  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B090  30 00 00 00 68 00 00 00  00 00 00 00 00 00 01 00  0...h...........
0010B0A0  4C 00 00 00 18 00 01 00  05 00 00 00 00 00 05 00  L...............
0010B0B0  E7 EF 17 FB 19 EE DC 01  E7 EF 17 FB 19 EE DC 01  ................
0010B0C0  18 65 18 FB 19 EE DC 01  E7 EF 17 FB 19 EE DC 01  .e..............
0010B0D0  20 00 00 00 00 00 00 00  1B 00 00 00 00 00 00 00   ...............
0010B0E0  20 00 00 00 3C 00 00 00  05 00 61 00 2E 00 74 00   ...<.....a...t.
0010B0F0  78 00 74 00 00 00 00 00  80 00 00 00 38 00 00 00  x.t.........8...
0010B100  00 00 18 00 00 00 02 00  1B 00 00 00 18 00 00 00  ................
0010B110  48 65 6C 6C 6F 20 66 72  6F 6D 20 74 68 65 20 6F  Hello from the o
0010B120  74 68 65 72 20 73 69 64  65 2E 0A 00 00 00 00 00  ther side.......
0010B130  D0 00 00 00 20 00 00 00  00 00 18 00 00 00 03 00  .... ...........
0010B140  08 00 00 00 18 00 00 00  2D 00 00 00 3C 00 00 00  ........-...<...
0010B150  E0 00 00 00 58 00 00 00  00 00 18 00 00 00 04 00  ....X...........
0010B160  3C 00 00 00 18 00 00 00  14 00 00 00 00 06 04 00  <...............
0010B170  24 4C 58 55 49 44 00 E8  03 00 00 00 14 00 00 00  $LXUID..........
0010B180  00 06 04 00 24 4C 58 47  49 44 00 E8 03 00 00 00  ....$LXGID......
0010B190  14 00 00 00 00 06 04 00  24 4C 58 4D 4F 44 00 A4  ........$LXMOD..
0010B1A0  81 00 00 00 00 00 00 00  FF FF FF FF 00 00 00 00  ................
0010B1B0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B1C0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B1D0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B1E0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B1F0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 67 04  ..............g.
0010B200  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B210  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B220  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B230  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B240  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B250  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B260  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B270  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B280  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B290  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B2A0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B2B0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B2C0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B2D0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B2E0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B2F0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B300  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B310  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B320  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B330  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B340  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B350  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B360  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B370  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B380  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B390  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B3A0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B3B0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B3C0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B3D0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B3E0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B3F0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 67 04  ..............g.

I have analyzed via the tables below the Resident file’s record: As seen , i have chosen to focus on what was important for showing important fields like time of creations,offsets and so on.

Every record has a Record header, and has many attributes: Record Header

Offset	Size	OS	Description
0x00	4		Magic number ‘FILE’
0x04	2		Offset to the update sequence
0x06	2		Size in words of Update Sequence Number & Array (S)
0x08	8		$LogFile Sequence Number (LSN)
0x10	2		Sequence number
0x12	2		Hard link count
0x14	2		Offset to the first Attribute
0x16	2		Flags
0x18	4		Real size of the FILE record
0x1C	4		Allocated size of the FILE record
0x20	8		File reference to the base FILE record
0x28	2		Next Attribute Id
0x2A	2	XP	Align to 4 byte boundary
0x2C	4	XP	Number of this MFT Record
	2		Update Sequence Number (a)
	2S-2		Update Sequence Array (a)
In my example:

Magic number - 46 49 4C 45
Offset to the first Attribute - 30 00
Flags - 01 00

File record flags

Flags value	Meaning
0x00	Deleted file
0x01	Active file
0x02	Deleted directory
0x03	Active directory
0x04 / 0x08 / combinations	Non-standard / rare cases (ignore in basic parsing)

Now I chose to focus on : $STANDARD_INFORMATION ,$FILE_NAME ,$DATA:

Layout of the $STANDARD_INFORMATION (0x10) attribute

Offset	Size	OS	Description
~	~		Standard Attribute Header
0x00	8		C Time - File Creation
0x08	8		A Time - File Altered
0x10	8		M Time - MFT Changed
0x18	8		R Time - File Read
0x20	4		DOS File Permissions
0x24	4		Maximum Number of Versions
0x28	4		Version Number
0x2C	4		Class Id
0x30	4	2K	Owner Id
0x34	4	2K	Security Id
0x38	8	2K	Quota Charged
0x40	8	2K	Update Sequence Number (USN)

In my example:

Header:
	Attribute Type - 10 00 00 00
	Length (including this header) - 60 00 00 00
	Non-resident/Resident flag - 00
	Flags - 00 00
	Offset to the Attribute - 18 00

Attribute:
	Creation Time - E7 EF 17 FB 19 EE DC 01
	Altered Time - E7 EF 17 FB 19 EE DC 01
	Read Time - E7 EF 17 FB 19 EE DC 01
	File Permissions - 20 00 00 00

File Permissions

Flag	Description
0x0001	Read-Only
0x0002	Hidden
0x0004	System
0x0020	Archive
0x0040	Device
0x0080	Normal
0x0100	Temporary
0x0200	Sparse File
0x0400	Reparse Point
0x0800	Compressed
0x1000	Offline
0x2000	Not Content Indexed
0x4000	Encrypted

Layout of the $FILE_NAME (0x30) attribute

Offset	Size	Description
~	~	Standard Attribute Header
0x00	8	File reference to the parent directory.
0x08	8	C Time - File Creation
0x10	8	A Time - File Altered
0x18	8	M Time - MFT Changed
0x20	8	R Time - File Read
0x28	8	Allocated size of the file
0x30	8	Real size of the file
0x38	4	Flags, e.g. Directory, compressed, hidden
0x3c	4	Used by EAs and Reparse
0x40	1	Filename length in characters (L)
0x41	1	Filename namespace 0x42 2L File name in Unicode (not null terminated)
In my example:

Header:
	Attribute Type - 30 00 00 00
	Length (including this header) - 68 00 00 00
	Non-resident/Resident flag - 00
	Flags - 00 00
	Offset to the Attribute - 18 00

Attribute:
	File reference to the parent directory - 05 00 00 00 00 05 00
	Creation Time - E7 EF 17 FB 19 EE DC 01
	Altered Time - E7 EF 17 FB 19 EE DC 01
	Read Time - E7 EF 17 FB 19 EE DC 01
	Size of File - 1B 00 00 00 00 00 00 00
	Flags - 20 00 00 00
	File Name Length - 05
	File Name - 61 00 2E 00 74 00 78 00 74 00

File Flags

Flag	Description
0x0001	Read-Only
0x0002	Hidden
0x0004	System
0x0020	Archive
0x0040	Device
0x0080	Normal
0x0100	Temporary
0x0200	Sparse File
0x0400	Reparse Point
0x0800	Compressed
0x1000	Offline
0x2000	Not Content Indexed
0x4000	Encrypted
0x10000000	Directory (copy from corresponding bit in MFT record)
0x20000000	Index View (copy from corresponding bit in MFT record)

Layout of the $DATA (0x80) attribute

Offset	Size	Description
~	~	Standard Attribute Header
0x00		Any data
In my example:

Header:
	Attribute Type - 80 00 00 00
	Length (including this header) - 38 00 00 00
	Non-resident/Resident flag - 00
	Flags - 00 00
	Length of the Attribute - 18 00 00 00
	Offset to the Attribute - 18 00

Attribute:
	Acual Data - 48 65 6C 6C 6F 20 66 72  6F 6D 20 74 68 65 20 6F 74 68 65 72 20 73 69 64  65 2E 0A

To sum this up, we found a file with the following data:

========================== RECORD HEADER ==============================
Magic number - 46 49 4C 45
Offset to the first Attribute - 30 00
Flags - 01 00
========================== STANDARD INFORMATION =======================
Header:
	Attribute Type - 10 00 00 00
	Length (including this header) - 60 00 00 00
	Non-resident/Resident flag - 00
	Flags - 00 00
	Offset to the Attribute - 18 00

Attribute:
	Creation Time - E7 EF 17 FB 19 EE DC 01
	Altered Time - E7 EF 17 FB 19 EE DC 01
	Read Time - E7 EF 17 FB 19 EE DC 01
	File Permissions - 20 00 00 00
=========================== FILE NAME =================================
Header:
	Attribute Type - 30 00 00 00
	Length (including this header) - 68 00 00 00
	Non-resident/Resident flag - 00
	Flags - 00 00
	Offset to the Attribute - 18 00

Attribute:
	File reference to the parent directory - 05 00 00 00 00 05 00
	Creation Time - E7 EF 17 FB 19 EE DC 01
	Altered Time - E7 EF 17 FB 19 EE DC 01
	Read Time - E7 EF 17 FB 19 EE DC 01
	Size of File - 1B 00 00 00 00 00 00 00
	Flags - 20 00 00 00
	File Name Length - 05
	File Name - 61 00 2E 00 74 00 78 00 74 00
================================ DATA =================================
Header:
	Attribute Type - 80 00 00 00
	Length (including this header) - 38 00 00 00
	Non-resident/Resident flag - 00
	Flags - 00 00
	Offset to the Attribute - 18 00

Attribute:
	Acual Data - 48 65 6C 6C 6F 20 66 72  6F 6D 20 74 68 65 20 6F 74 68 65 72 20 73 69 64  65 2E 0A

Summary

Item	Value
MFT Record Type	File
Status	In Use
Filename	`a.txt`
Parent Directory	Root (`MFT #5`)
Size	27 bytes
Attributes	Archive
Creation Time	2026-05-27 20:47:06 UTC
Modified Time	2026-05-27 20:47:06 UTC
Read Time	2026-05-27 20:47:06 UTC
Resident Data	Yes
Content	`Hello from the other side.`

Recovering Resident File

This is the easiest recovery method, because we already have all the data in our record.

dd if=(DISK_LOCATION) of=(FILE_NAME) bs=1 skip=$((DATA_HEADER_LOCATION + DATA_OFFSET)) count=FILE_SIZE

So in our example:

DISK_LOCATION=./disk.img
FILE_NAME=a.txt
$DATA attribute header starts = 0x0010B0F8 (Where does the record start)
DATA_OFFSET (inside MFT) = 18 00 -> 0x18
FILE_SIZE = 27 bytes

Where the data lives = 0x0010B0F8 + 0x18 = 0x0010B110

Meaning:

dd if=disk.img of=a.txt bs=1 skip=$((0x0010B110)) count=27

27+0 records in
27+0 records out
27 bytes copied, 0.000374215 s, 72.2 kB/s

cat a.txt

Hello from the other side.

And we got the file!!

Even if was deleted, it only sets the flag of the record as deleted, the information still exists within the record, meaning the same command will recover deleted information.

None Resident file

Since we now seen the resident file’s example, i shall write only unique points that are for the none-resident file.

A none-resident file is a record that its data could not fully store in the $MFT, since it more than the threshold of 1024 bytes for a record, therefore creates pointers to where the rest of the data resigns.

The copied file, which was deleted 12 - High School Sweethearts.m4a:

Hex View  00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F

0010B400  46 49 4C 45 2A 00 03 00  00 00 00 00 00 00 00 00  FILE*...........
0010B410  04 00 01 00 30 00 01 00  F8 01 00 00 00 04 00 00  ....0...........
0010B420  00 00 00 00 00 00 00 00  06 00 01 00 00 00 00 00  ................
0010B430  10 00 00 00 60 00 00 00  00 00 00 00 00 00 00 00  ....`...........
0010B440  48 00 00 00 18 00 00 00  C0 C7 32 66 DF F1 DC 01  H.........2f....
0010B450  63 A6 33 5B 9F C2 DC 01  EE D9 3C 66 DF F1 DC 01  c.3[......<f....
0010B460  E2 23 3F 66 DF F1 DC 01  20 00 00 00 00 00 00 00  .#?f.... .......
0010B470  00 00 00 00 00 00 00 00  00 00 00 00 02 01 00 00  ................
0010B480  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B490  30 00 00 00 A0 00 00 00  00 00 00 00 00 00 01 00  0...............
0010B4A0  82 00 00 00 18 00 01 00  05 00 00 00 00 00 05 00  ................
0010B4B0  C0 C7 32 66 DF F1 DC 01  63 A6 33 5B 9F C2 DC 01  ..2f....c.3[....
0010B4C0  EE D9 3C 66 DF F1 DC 01  E2 23 3F 66 DF F1 DC 01  ..<f.....#?f....
0010B4D0  00 D0 4D 00 00 00 00 00  F7 CC 4D 00 00 00 00 00  ..M.......M.....
0010B4E0  20 00 00 00 3C 00 00 00  20 00 31 00 32 00 20 00   ...<... .1.2. .
0010B4F0  2D 00 20 00 48 00 69 00  67 00 68 00 20 00 53 00  -. .H.i.g.h. .S.
0010B500  63 00 68 00 6F 00 6F 00  6C 00 20 00 53 00 77 00  c.h.o.o.l. .S.w.
0010B510  65 00 65 00 74 00 68 00  65 00 61 00 72 00 74 00  e.e.t.h.e.a.r.t.
0010B520  73 00 2E 00 6D 00 34 00  61 00 00 00 00 00 00 00  s...m.4.a.......
0010B530  80 00 00 00 48 00 00 00  01 00 40 00 00 00 05 00  ....H.....@.....
0010B540  00 00 00 00 00 00 00 00  DC 04 00 00 00 00 00 00  ................
0010B550  40 00 00 00 00 00 00 00  00 D0 4D 00 00 00 00 00  @.........M.....
0010B560  F7 CC 4D 00 00 00 00 00  F7 CC 4D 00 00 00 00 00  ..M.......M.....
0010B570  32 DD 04 0E 02 01 00 00  D0 00 00 00 20 00 00 00  2........... ...
0010B580  00 00 18 00 00 00 03 00  08 00 00 00 18 00 00 00  ................
0010B590  2D 00 00 00 3C 00 00 00  E0 00 00 00 58 00 00 00  -...<.......X...
0010B5A0  00 00 18 00 00 00 04 00  3C 00 00 00 18 00 00 00  ........<.......
0010B5B0  14 00 00 00 00 06 04 00  24 4C 58 55 49 44 00 E8  ........$LXUID..
0010B5C0  03 00 00 00 14 00 00 00  00 06 04 00 24 4C 58 47  ............$LXG
0010B5D0  49 44 00 E8 03 00 00 00  14 00 00 00 00 06 04 00  ID..............
0010B5E0  24 4C 58 4D 4F 44 00 A4  81 00 00 00 00 00 00 00  $LXMOD..........
0010B5F0  FF FF FF FF 00 00 00 00  00 00 00 00 00 00 01 00  ................
0010B600  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B610  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B620  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B630  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B640  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B650  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B660  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B670  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B680  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B690  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B6A0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B6B0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B6C0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B6D0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B6E0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B6F0  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B700  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B710  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B720  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B730  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B740  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B750  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B760  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B770  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
0010B780  D0 00 00 00 20 00 00 00  00 00 18 00 00 00 03 00  .... ...........
0010B790  08 00 00 00 18 00 00 00  2D 00 00 00 3C 00 00 00  ........-...<...
0010B7A0  E0 00 00 00 58 00 00 00  00 00 18 00 00 00 04 00  ....X...........
0010B7B0  3C 00 00 00 18 00 00 00  14 00 00 00 00 06 04 00  <...............
0010B7C0  24 4C 58 55 49 44 00 E8  03 00 00 00 14 00 00 00  $LXUID..........
0010B7D0  00 06 04 00 24 4C 58 47  49 44 00 E8 03 00 00 00  ....$LXGID......
0010B7E0  14 00 00 00 00 06 04 00  24 4C 58 4D 4F 44 00 A4  ........$LXMOD..
0010B7F0  81 00 00 00 00 00 00 00  FF FF FF FF 00 00 01 00  ................

Since its a none-resident file, the header table is different so i used the non-resident named attribute header.

I will focus on the data:

Hex View  00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F

0010B530  80 00 00 00 48 00 00 00  01 00 40 00 00 00 05 00  ....H.....@.....
0010B540  00 00 00 00 00 00 00 00  DC 04 00 00 00 00 00 00  ................
0010B550  40 00 00 00 00 00 00 00  00 D0 4D 00 00 00 00 00  @.........M.....
0010B560  F7 CC 4D 00 00 00 00 00  F7 CC 4D 00 00 00 00 00  ..M.......M.....
0010B570  32 DD 04 0E 02 01 00 00  D0 00 00 00 20 00 00 00  2........... ...
0010B580  00 00 18 00 00 00 03 00  08 00 00 00 18 00 00 00  ................
0010B590  2D 00 00 00 3C 00 00 00  E0 00 00 00 58 00 00 00  -...<.......X...
0010B5A0  00 00 18 00 00 00 04 00  3C 00 00 00 18 00 00 00  ........<.......
0010B5B0  14 00 00 00 00 06 04 00  24 4C 58 55 49 44 00 E8  ........$LXUID..
0010B5C0  03 00 00 00 14 00 00 00  00 06 04 00 24 4C 58 47  ............$LXG
0010B5D0  49 44 00 E8 03 00 00 00  14 00 00 00 00 06 04 00  ID..............
0010B5E0  24 4C 58 4D 4F 44 00 A4  81 00 00 00 00 00 00 00  $LXMOD..........
0010B5F0  FF FF FF FF 00 00 00 00  00 00 00 00 00 00 01 00  ................

I have highlighted the important data: None-Resident

Run List

We found where the data actually lives :

32 DD 04 0E 02 01 00 00

First byte is 32: [run-length-size | LCN-size] 2 - run-length-size -> DD 04 -little-endian—> 0x04DD 3 - The first cluster (LCN) -> 02 01 -little-endian—> 0x01020E Then after reading the run we end with 0` , meaning its the end of the runlist.

A run list is to pin point to which starting location and for how many are there cluster the data is stored.

The size of the file is 0x4DCCF7 -> 5098743 bytes -> 5.098743 MiB.

- Beginning of the file formula: = (The first cluster,LCN) * (Size of cluser) + PartitionStart
  - Calculation:0x01020E * 0x1000 + 0x00100000 = 0x01030E000 -Decimal->271638528
End of the file formula: = Beginning of file + Total size
- Calculation: 0x01031E000 + 0x4DCCF7 = 0x0107EACF7

Recovering None-Resident File

Now for the magic part (For 1 fragments, continuous data), which is that we recover the file from where its data resides:

dd if=disk.img of=SweetHearts.m4a bs=1 skip=271638528 count=5098743

dd - A low-level byte copier if=disk.img - My entire virtual disk image (Input) of=SweetHearts.m4a - The recovered file we are reconstructing (Output) bs=1 - Block size = 1 byte (everything is counted in bytes) skip=271638528 - Start position inside disk.img count=5098743 - How many bytes to copy (File Size)

dd if=disk.img of=./SweetHearts.m4a bs=1 skip=271638528 count=5098743

5098743+0 records in
5098743+0 records out
5098743 bytes (5.1 MB, 4.9 MiB) copied, 4.05138 s, 1.3 MB/s

And we got the file!!!

Even after deleting the file we can use the same command and recover deleted files.

After Deleting the file:

Hex View  00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F

0010B400  46 49 4C 45 2A 00 03 00    00 00 00 00 00 00 00 00  FILE*...........
0010B410  04 00 00 00 30 00 |00 00|  58 01 00 00 00 04 00 00  ....0...X.......
                             ^^^^^
                          Deleted Flag

Data may not be fully recovered since it can sometimes be overwritten with other data.
Fresh deleted files are likely to be fully recovered.

It’s not the end yet!

Fragments

We can have multiple point of fragmented data stored, meaning we would have multiple runs, after all of them its going to end via 0.

This can happen because of:

Free space holes
File growth over time
Reuse of deleted clusters

Fragmented random example: Say we have data of the run list:

00123450  11 05 64 11 03 32 11 02 EC 00

To highlight which is which:

00123450  11 05 64
           │  │  └─ Offset = 0x64 = 100
           │  └──── Length = 0x05 = 5 clusters
           └─────── Header (1-byte length, 1-byte offset)

00123453  11 03 32
           │  │  └─ Offset = 0x32 = 50
           │  └──── Length = 0x03 = 3 clusters
           └─────── Header

00123456  11 02 EC
           │  │  └─ Offset = 0xEC = -20
           │  └──── Length = 0x02 = 2 clusters
           └─────── Header

00123459  00
           └─ End of runlist

Lets visualize it:

File Order:
┌─────────┐
│ Run #1  │ -> Clusters 100-104
├─────────┤
│ Run #2  │ -> Clusters 150-152
├─────────┤
│ Run #3  │ -> Clusters 130-131
└─────────┘

Recovering A Fragmented File

We here shall use a different strategy.

Run 1:

Length = 0x05 = 5 clusters
LCN delta = 0x64 = 100

So:

Start LCN = 100
Length = 5

Run 2:

Length = 0x03 = 3 clusters
LCN delta = 0x32 = 50

But, its RELATIVE to the first starting run LCN. So:

LCN2 = 100 + 50 = 150

Run 3:

Length = 0x02 = 2 clusters
LCN delta = 0xEC = 236

LCN3 = 150 + 236 = 386
Length = 2

After we got where the fragmented data starts for each run which is: [chunk A] + [chunk B] + [chunk C].

We then extract them separately:

dd if=disk.img of=part1 bs=4096 skip=100 count=5
dd if=disk.img of=part2 bs=4096 skip=150 count=3
dd if=disk.img of=part3 bs=4096 skip=386 count=2

And then contaminate:

cat part1 part2 part3 > file.m4a

Automation

Via the logic above I have created a TUI that parses MFT, shows files that contain the deleted flag and show the reconstructed deleted files with their file name intact.

Via o I can recover all the deleted files from the disk into an auto created folder and sub folders of each partition and their corresponding deleted files.

Via my tool I have analysed how Windows handles deletions and files, which I then recovered both resident and none resident files.

Observations

Windows vs Linux NTFS

Linux

When the Linux driver writes files, it forces heavy POSIX security metadata ($LXMOD, etc.) into the MFT record. This leaves zero space for filenames, forcing them into external extension records which get instantly destroyed on deletion.

Meaning when I tried to delete a file in Linux, the file name of the file completely disappeared yet their data was still intact, which is a loss of data.

Windows

But usually in windows there are 2 types of deleted methods:

Delete via Recycle Bin
Instant delete

When deleting a file via Recycle Bin, It created 2 type of MFT records:

(Example)


The file that starts with $R contains the actual data of the deleted file while $I contains the absolute path of the file including the file name.

Meaning we could recover all of the data until it gets over written.

The second options was to delete it instantly which provided me with the original record with just its deleted flag, meaning no complicated reconstruction has to be made.

When I checked for data of my .png file that is not resident, I found out that it contains a resident data but it has more than one data attributes.

This is whats called data steams.

Example:

├─ Main stream
├─ Zone.Identifier
├─ SummaryInformation
└─ CustomStream

A file can contain additional data that is not visible while browsing, like metadata, which could be used maliciously: https://owasp.org/www-community/attacks/Windows_alternate_data_stream

NTFS - Analysis and recov3r

First words

Setup - Virtual disk creation

Analysis time

MBR

Observations

Partition

Observations

$MFT

Observations

Record Types

$MFT Record

Attribute Headers

Attributes

Resident file

Summary

Recovering Resident File

None Resident file

Run List

Recovering None-Resident File

Fragments

Recovering A Fragmented File

Automation

Observations

Windows vs Linux NTFS

Linux

Windows

ADS
